Self-host your music experience on mobile

I have written in the past (here and here) about my self-hosted home music setup based on Mopidy, Platypush, and Snapcast.

I love it and I've been using it for years now. But until recently I couldn't find a good way to break the music streaming jail on my mobile devices.

The Mopidy+Platypush setup allows for great flexibility: multiple music sources (local files, Spotify, YouTube, Jellyfin, Tidal, Soundcloud, Bandcamp...), multiple output devices (Snapcast clients, local audio output, Bluetooth speakers...), multiple frontends (web, command line, Mopidy mobile apps...), powerful automation capabilities through Platypush, and if you add Snapcast on top you also get multi-room synchronized playback.

But on Android I've been stuck for a while with using multiple streaming apps for different services (Spotify app for Spotify, YouTube app for YouTube Music, VLC for local files, Jellyfin/Finamp to stream from my Jellyfin media server...) and switching between them manually.

And those apps don't fit my use-cases very well either. The Tidal app in particular is quite suboptimal - it may take 30-60 it seconds to perform a simple search in a large playlist (when it doesn't crash), it immediately freezes once playback starts in another location (like when my kid starts playing music from his room), and it eats up 120 MB of storage just for the base app (if you also have other music apps installed, you may easily hit the 500 MB mark without even downloading any music for offline playback). And, of course, the trackers - oh, the trackers!

For a while I used the Platypush music.mopidy PWA to stream from my Mopidy server on my mobile device, with the Snapcast app installed on my phone to get a stream from the Mopidy server in my home, but that was not ideal either. I needed an extra Mopidy server in my home with no audio devices attached to it so that I could stream to my phone while outside without blasting music at home, and the Snapcast stream had an intolerable latency (5-10 seconds, and it grows worse the longer the stream is active).

So I decided to build a better mobile music streaming by bringing the Mopidy+Platypush experience directly on my Android phone.

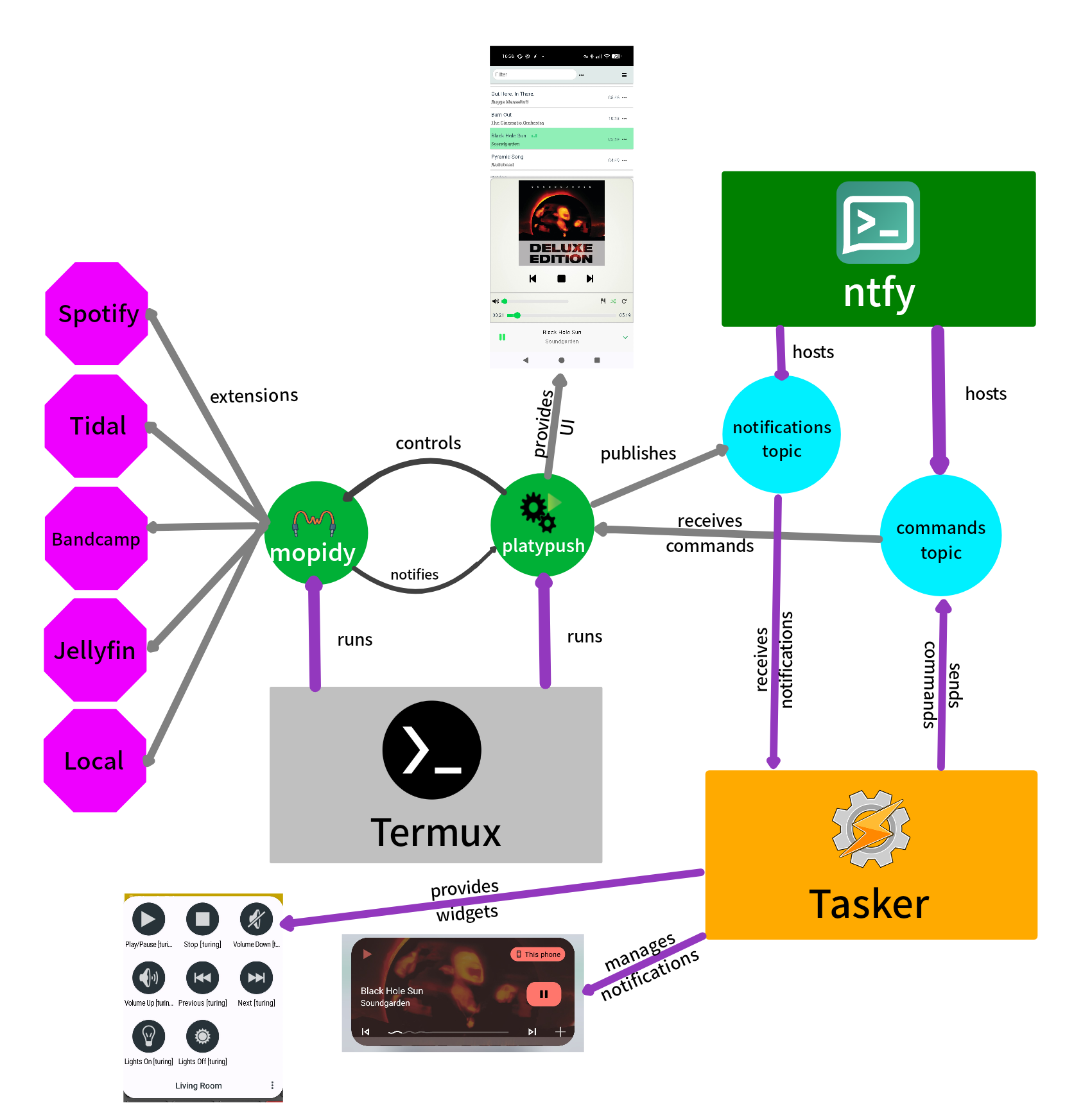

The architecture is shown in the diagram below:

By the end of this article you'll have a self-hosted mobile music streaming setup that doesn't rely on any third-party apps (but allows you to integrate with third-party streaming services like Spotify or Bandcamp without having to use their apps), and that you can fully control and automate through Platypush.

Prerequisites

• An Android phone with at least 4 GB of RAM and sufficient storage space to install some relatively large apps (Termux and Tasker)

• Sufficient confidence with Linux command line and Android automation tools.

Dependencies

The following dependencies need to be installed on your Android phone:

• Termux: a terminal emulator and Linux environment for Android. You can install it from F-Droid or GitHub.

• Tasker: a powerful Android automation app. You can install it from the Google Play Store. NOTE: Tasker is a paid app (about $5), but it's worth the price if you want to automate stuff on your Android device. I have tried several times to break my Tasker cage and rewrite my automations using Termux+Platypush, but the Android ecosystem has so many quirks that don't apply to a standard Linux environment, and that Tasker has already learned how to deal with, that I always end up going back to it.

• AutoNotification, a Tasker plugin to create and manage Android notifications. We'll need this to create interactive media notifications to control playback through Tasker.

• AutoTools: a Tasker plugin that provides various utilities, including HTTP requests and JSON parsing. We'll use this to interact with the ntfy service from Tasker.

• ntfy: a simple notification service that can be used to send push notifications to your Android device. You can install the ntfy app from the Google Play Store or from F-Droid.

Termux setup

Initial setup

After installing Termux, open the app, wait a bit for the initial setup to complete, and then run the following commands to update the package lists and upgrade the installed packages:

pkg update && pkg upgrade -y

And install the following base dependencies:

pkg install curl python redis termux-services

NOTE: There is a known issue with Termux on Android 12 and later that prevents background services from working properly. If you're using Android 12 or later, please follow the instructions in that comment to fix the issue.

And remember to disable battery optimizations for Termux in your Android settings, otherwise background services may be killed by the system.

(Recommended) SSH setup

After installing Termux, it's recommended to set up SSH access to your Termux environment so that you can easily connect to it from your computer for file transfers and remote command execution.

Install the OpenSSH package:

pkg install openssh

Set a password for the termux user:

passwd

Then enable and start the SSH service:

sv-enable sshd
sv up sshd

Then retrieve your phone's IP address on the local network:

ifconfig | grep -A 2 wlan0

Note that for this to work your phone needs to be connected to the same Wi-Fi network as your computer, or you can use a VPN client to connect them to the same network, or USB tethering.

You can test the SSH connection from your computer with:

ssh -p 8022 PHONE_IP_ADDRESS

If you have sshfs installed on your computer, you can also mount your Termux home directory as a local filesystem, which will facilitate file transfers:

mkdir -p ~/termux
sshfs -p 8022 PHONE_IP_ADDRESS: ~/termux

Mopidy installation

Mopidy is a general-purpose music server that can play music from local files and from various streaming services through extensions.

It provides extensions for Spotify, Jellyfin, YouTube, Tidal, Bandcamp, SoundCloud, local files, and much more.

It also provides extensions for MPD (recommended, as it provides out-of-the-box compatibility with many existing MPD clients), an official mobile app, a good Web-based interface that also doubles as a mobile PWA, and many more extensions.

First, install the backend dependencies required by Mopidy:

pkg install gstreamer gst-plugins-base gst-plugins-good gst-plugins-bad gst-plugins-ugly

Install Mopidy (and all the extension you want) in the Termux environment using pip:

pip install mopidy \
  mopidy-mpd \
  mopidy-iris \
  mopidy-spotify \
  mopidy-youtube \
  mopidy-jellyfin \
  mopidy-tidal \
  mopidy-bandcamp \
  mopidy-soundcloud \
  mopidy-local \
  ...

(Optional) Spotify setup

Optional steps for mopidy-spotify:

pkg install rust clang libllvm pkg-config git
git clone --depth 1 https://gitlab.freedesktop.org/gstreamer/gst-plugins-rs
cd gst-plugins-rs
cargo build --package gst-plugin-spotify --release
install -m 644 target/release/libgstspotify.so $(pkg-config --variable=pluginsdir gstreamer-1.0)/

# Verify that the Spotify plugin is correctly installed
gst-inspect-1.0 spotify

Configuration

Start Mopidy from the command line once to generate the default configuration file under ~/.config/mopidy/mopidy.conf:

mopidy

Stop the process (Ctrl+C), open the file in your favourite text editor, and uncomment or modify the sections relevant for your setup. Most of the streaming extensions require you to set up API keys or client IDs, so make sure to follow the instructions on the documentation of the relevant Mopidy extensions.

Start the service again once configured to verify that everything is working.

Enable Mopidy as a background service

If you don't see any errors, you can enable Mopidy as a background service in Termux.

Unfortunately termux-services doesn't provide a native binding for Mopidy, nor an easy way to provide a systemd-like experience in service management, but I have put together a small script to make life easier:

For direct download + installation:

curl -sSL https://gist.manganiello.tech/fabio/termux-services-setup/raw/HEAD/termux-services-setup.sh | sh

Then run the Mopidy service installation script:

For direct download + installation:

curl -sSL https://gist.manganiello.tech/fabio/install-mopidy-termux-service/raw/HEAD/install-mopidy-termux-service.sh | sh

Then refresh the services and enable and start the Mopidy service:

install-termux-services
sv-enable mopidy
sv up mopidy

Test the Mopidy setup

After starting the Mopidy service, you can check its logs to verify that everything is working correctly:

sv-log -f mopidy

Then you have several ways of controlling Mopidy from your mobile device.

Command line

# NOTE: The mopidy-mpd extension must be installed and enabled
pkg install mpc

# Check available commands
mpc help

# Get the current status
mpc status
mpc current

# List available playlists
mpc lsplaylists

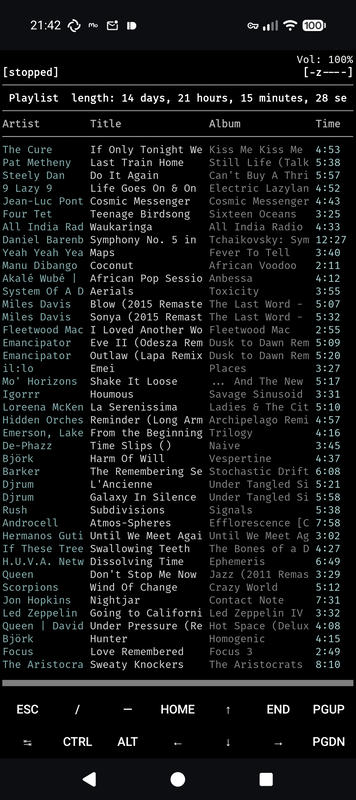

ncurses-based client

# NOTE: The mopidy-mpd extension must be installed and enabled
pkg install ncmpcpp

ncmpcpp has actually been my favourite music client since it came out in 2008. Its interface is minimal but extremely powerful, and it can be extended in many ways through its configuration file. But it's probably not the best choice to use on a mobile device (even though it does its job fine when needed).

Web-based client

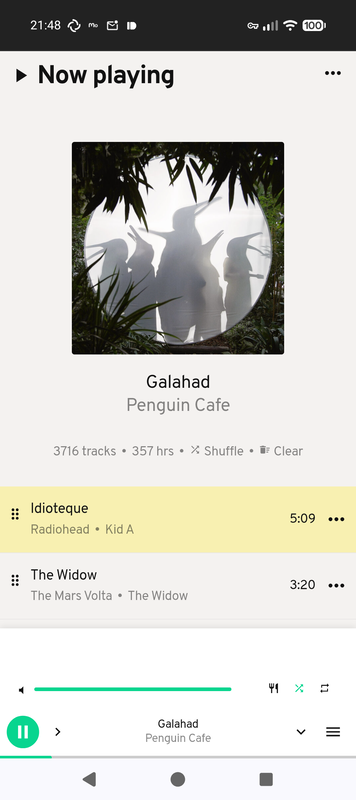

If you installed mopidy-iris, then you can access the Iris web interface from your mobile browser at http://localhost:6680/iris.

The good thing is that Iris is a PWA, so you can install it on your mobile home screen for easy access, it will work offline as well and run outside of the browser window.

Go to the Iris web interface in your mobile browser, open the browser menu, and select "Add to Home screen".

Unfortunately, it doesn't provide a native integration with Android's media controls, so you won't be able to control playback from the notification area or from a connected Bluetooth device (see the next sections for details on how to achieve that through Tasker+Platypush).

Native Android apps

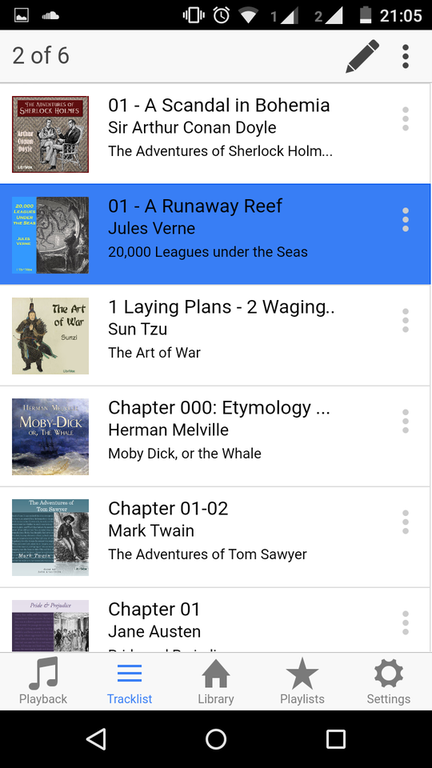

You can also install the official Mopidy mobile app from the Google Play Store, and set the server address to localhost:6680.

The interface looks a bit dated and the features are quite limited compared to Iris, but it works fine for basic playback control.

And, if you enabled the mopidy-mpd extension, you can also use any MPD client app to control playback (for example M.A.L.P.).

Just remember in that case to set the server address to localhost:6600, as these apps use the MPD protocol instead of the HTTP API.

Using MPD clients broadens the choice of available apps, as MPD has been around for a long time and there are many clients available on the Play Store and F-Droid, but it also misses some of the Mopidy-specific features that are only available through the HTTP API (for example, media images, fast playlist loads, playlist modifications on some streaming services...).

Wrapping up the Mopidy setup

At this point you should have a fully working Mopidy setup on your Android phone. The only requirement is that Termux should be running in the background for Mopidy to be active.

If you are happy with this setup and any of the options listed above, you can stop reading here.

Otherwise, if you want more control, a faster client and support for Android's native media controls, and a more scalable solution for media notifications if you also run other Mopidy services (e.g. on your Raspberry Pi at home). keep reading for the next steps.

ntfy setup

We will use two topics on ntfy:

• music-notifications-<your-unique-id>: the Platypush integration will publish playback state changes (play, pause, track change...) on this topic as they happen, and Tasker will listen to this topic to update the media notifications accordingly.

• music-commands-<your-unique-id>: Tasker will publish playback commands (play, pause, next track, previous track...) on this topic when the user interacts with the media notification, and the Platypush integration will listen to this topic to execute the commands on Mopidy.

NOTE: Replace <your-unique-id> with a unique, preferably random, identifier. Example command to generate a random ID:

head -c 8 /dev/urandom | base64 | tr '/+' '--' | tr -d '='

This is very important because ntfy topics are public and, if you use a free public instance, no authentication is required to publish or subscribe to them.

You can then install the ntfy Android app from the Google Play Store or from F-Droid.

After installing the app, open it and subscribe to the two topics created above.

IMPORTANT: Disable battery optimizations for the ntfy app in your Android settings. This is required to ensure that the app can receive notifications in the background without being killed by the system.

NOTE: By default the ntfy app will use the public instance at ntfy.sh (Web interface accessible at https://ntfy.sh/app).

This is fine if you are just testing the setup, but for production use, if you have a spare server, VPS, laptop or Raspberry Pi laying around and a spare domain name or subdomain, I recommend setting up your own ntfy server.

This should be quite straightforward through the Docker way:

docker run -d \
  --name ntfy \
  -p 8000:80 \
  -v /path/to/ntfy/data:/var/lib/ntfy \
  -e NTFY_BASE_URL=https://your.domain.tld \
  binwiederhier/ntfy \
  serve

You can also wrap it in a systemd service for easier management:

#!~/.config/systemd/user/ntfy.service

[Unit]
Description=ntfy server
After=network.target

[Service]
WorkingDirectory=/path/to/ntfy/data
ExecStart=/usr/bin/docker run --rm \
  --name ntfy \
  -p 8000:80 \
  -v /path/to/ntfy/data:/var/lib/ntfy \
  -e NTFY_BASE_URL=https://your.domain.tld \
  binwiederhier/ntfy \
  serve
ExecStop=/usr/bin/docker stop ntfy
Restart=always
RestartSec=10

[Install]
WantedBy=multi-user.target

Then enable and start the service with:

systemctl --user enable --now ntfy

Then look at the documentation for instructions on how to set up a reverse proxy with TLS termination.

If you use the self-hosted instance, remember to update the ntfy app settings to point to your server URL.

Platypush setup

Now that we have Mopidy running and ntfy set up, we can install Platypush to bridge notifications and commands between Mopidy and Tasker through ntfy.

Install Platypush in the Termux environment using pip. We will install the dependencies for the music.mpd, music.mopidy and ntfy plugins. A full list of available plugins can be found here.

pip install 'platypush[music.mpd,music.mopidy,ntfy]'

This is the configuration for Platypush:

Download the configuration to a temporary location in Termux:

export TARGET="$PREFIX/tmp/platypush-mopidy-termux-conf"

Through git:

git clone https://gist.manganiello.tech/fabio/platypush-mopidy-termux-conf "$TARGET"

Or through direct zip download:

curl -sSL https://gist.manganiello.tech/fabio/platypush-mopidy-termux-conf/archive/HEAD > "$TARGET.zip"
mkdir -p "$TARGET"
unzip "$TARGET.zip" -d "$TARGET"

IMPORTANT: Before installing the configuration, make sure to edit the placeholders for the ntfy topics and replace them with the actual topics you created earlier:

cd "$TARGET"
find -type f | xargs grep -nH 'NOTE:'
# Take note of the files and line numbers where the placeholders are located,
# then edit them with your favourite text editor (e.g. nano, vim...)

Then install the configuration to the Platypush config directory:

cd "$TARGET"
chmod +x install.sh
./install.sh

Then manually start Platypush to verify that everything is working:

platypush

Enable Platypush as a background service

If you don't see any errors, you can stop the service (Ctrl+C) and enable Platypush as a background service in Termux:

For direct download + installation:

curl -sSL https://gist.manganiello.tech/fabio/install-platypush-termux-service/raw/HEAD/install-platypush-termux-service.sh | sh

Then refresh the services and enable and start the Platypush service:

install-termux-services
sv-enable platypush
sv up platypush

And check the logs to verify that everything is working:

sv-log -f platypush

The Web interface

Once Platypush is running, you can access its Web interface at http://localhost:8008.

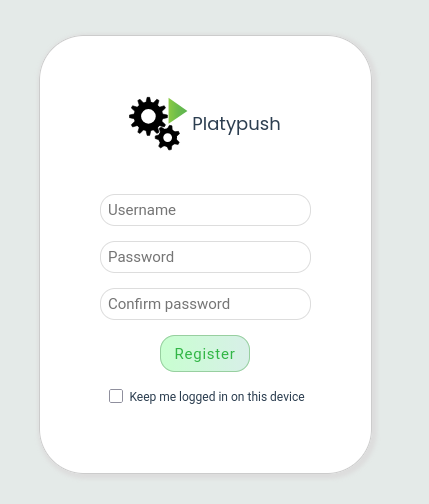

Upon first access, you'll be prompted to set up an admin user.

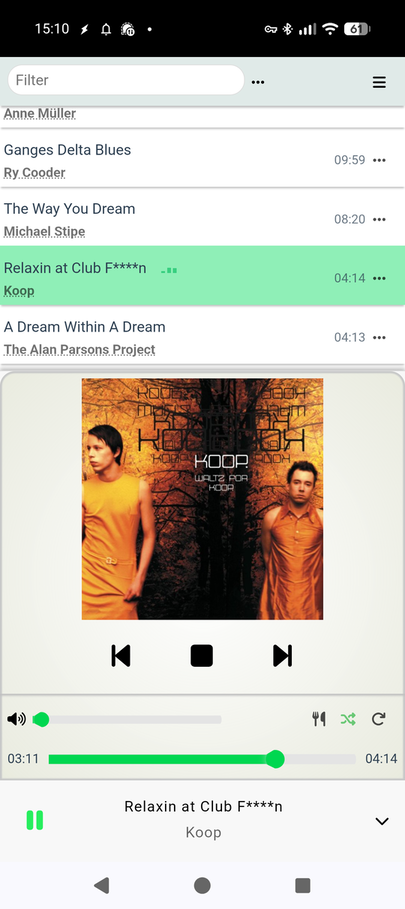

You will then see the music.mopidy in the menu bar on the left. Click on it to access the Web client.

You can also click on the Expand button on the right side of the plugin name to open the single-plugin interface, or access it directly at http://localhost:8008/plugin/music.mopidy.

This is similar to the Mopidy Iris interface, but it has better performance (especially when handling large collections and large playlists, as Platypush takes care of lazy loading and caching and does most of the filtering on the client side), and it integrates better with more extensions than Iris' (which uses Spotify's Web API to fetch most of the metadata).

Just like Iris, it can be installed as a PWA on your mobile home screen for easy access.

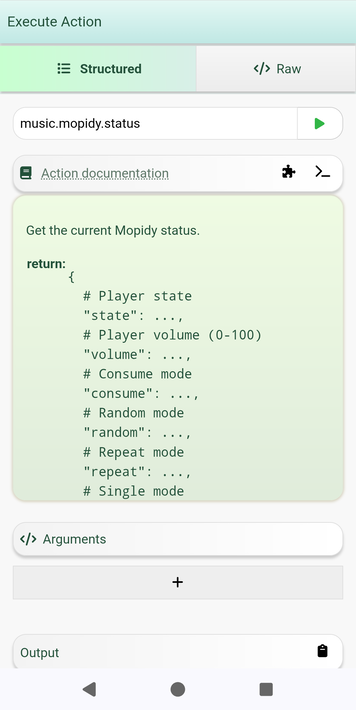

You can also explore all the available actions for the music.mopidy plugin from the Execute tab in the Web interface, which allows you to run any Platypush actions directly from the browser.

Tasker setup

At this point we have:

• Mopidy running on Termux, serving music from various sources
• Platypush running on Termux, bridging Mopidy and ntfy
• ntfy running on our Android device, receiving notifications from Platypush

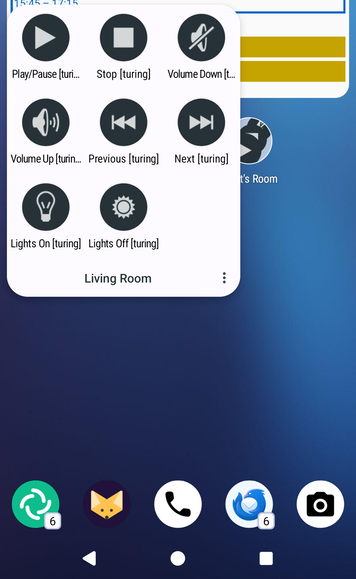

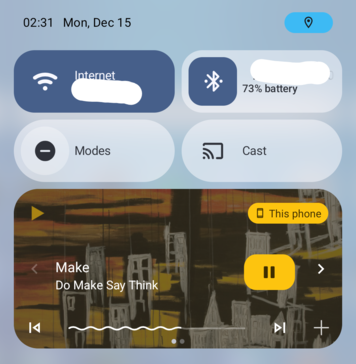

Now we need to set up Tasker to listen to ntfy notifications and create media notifications that allow us to control playback.

You'll need the following apps:

• Tasker
• AutoNotification
• AutoTools
• AutoApps

When you start Tasker for the first time, choose the "full experience" (not Tasky, the simplified version of Tasker), and grant all the required permissions.

Tasker: Create playback command tasks

The first thing we need is some tasks to send playback commands to Platypush through the previously configured ntfy topic.

Select the "Tasks" tab in Tasker, then tap the "+" button to create a new task. Call it "Music Command Generic". Then add new actions by tapping the "+" button at the bottom right corner:

# The first parameter of this task includes the target of the command.
# It must match the device_id configured in Platypush.
# This is useful because it allows us to reuse the same ntfy topic to
# control multiple Mopidy instances (e.g. one at home, one on the phone...)
# by simply passing a different target device_id.

- Variable > Variable Set
  Name: %device_id
  To: %par1

# The second parameter is the command to send.
- Variable > Variable Set
  Name: %command
  To: %par2

# Build the JSON payload.
- Plugin > AutoTools > JSON Write
  Configuration:
    - Simple Values > Json Keys
      - Content: %device_id,%command
    - Simple Values > Json Values
      - Content: %device_id,%command
    - Json Result Variable
      - Content: %payload

# Send the command to the ntfy topic.
- Net > HTTP Request
  - Method: POST
  - URL: <ntfy-base-url>/music-commands-<your-unique-id>
  - Body: %payload
  - Structure Output (JSON, etc.): ✔️

Now we can easily create specific tasks for each playback command by reusing the generic task we just created.

Play/Pause command:

- New Task: Play/Pause [phone]
- Task > Perform Task
  Name: Music Command Generic
  Parameters:
    # Must match the device_id configured in Platypush
    - par1: phone
    - par2: TOGGLE

Next track command:

- New Task: Next Track [phone]
- Task > Perform Task
  Name: Music Command Generic
  Parameters:
    # Must match the device_id configured in Platypush
    - par1: phone
    - par2: NEXT

Previous track command:

- New Task: Previous Track [phone]
- Task > Perform Task
  Name: Music Command Generic
  Parameters:
    # Must match the device_id configured in Platypush
    - par1: phone
    - par2: PREVIOUS

Stop playback command:

- New Task: Stop Playback [phone]
- Task > Perform Task
  Name: Music Command Generic
  Parameters:
    # Must match the device_id configured in Platypush
    - par1: phone
    - par2: STOP

Run these tasks once to verify that they work correctly.

(Optional) Tasker: Install commands as widgets

Since these tasks may be used often and they're kind of self-contained, you can also install them on your home screen for easier access. You have three options:

• Install them as Tasker widgets: long-press on your home screen, select "Widgets", then find the "Tasker" section and drag the "Task" (or "Shortcut") widget to your home screen. When prompted, select the task you want to assign to the widget.

• Install them as apps: from Tasker, long-press on the task you want to install, select "Export", then "As App". This will create a standalone app that you can install on your device. You can then add it to your home screen like any other app. Even though the process is slightly more cumbersome, and each additional app takes some extra storage space, this method has the advantage that you can group apps together in folders on your home screen, while widgets cannot be grouped. Also, the apps can be directly launched from other apps or intents, they can also be assigned to physical buttons, and they can be exported to other devices more easily.

Tasker: Create media notification profile

Now we need to create a Tasker profile that listens to ntfy notifications from Platypush and creates an interactive media notification that allows us to control playback.

Select the "Profiles" tab in Tasker, then tap the "+" button to create a new profile, and call it e.g. "On Music Notification". Then select "Event" as the profile type, then "System" > "Intent Received". Then configure the task as follows:

# Skip notifications that are not from the music-notifications topic
- Task > Stop
  If: %topic neq "music-notifications-<your-unique-id>"

# Parse the notification payload
- Plugin > AutoTools > JSON Read
  Configuration:
    - Json: %message
    - Fields: artist,title,album,date,duration,elapsed,image,device_id,state

# Warn and stop if the notification couldn't be parsed
- Task > If
  Condition: %errmsg is set

  - Alert > Flash
    Text: "Error parsing music notification: %errmsg"

  - Task > Stop

- Task > End If

# Set a unique ID for the notification updates from this device
- Variable > Variable Set
  Name: %notification_id
  To: music-%device_id

# Clear the notification and stop if the state is stopped
- Task > If
  Condition: %state eq "stop"

  - Plugin > AutoNotification > Cancel
    Configuration:
      - Notification ID: %notification_id

  - Task > Stop

- Task > End If

# Convert the state and pick the icon
- Task -> If
  Condition: %state eq "play"

  - Variable > Variable Set
    Name: %notif_state
    To: playing

  - Variable > Variable Set
    Name: %action_icon
    To: android.resource://net.dinglisch.android.taskerm/drawable/hl_ab_av_play

- Task > End If

- Task > If
  Condition: %state eq "pause"

  - Variable > Variable Set
    Name: %notif_state
    To: paused

  - Variable > Variable Set
    Name: %action_icon
    To: android.resource://net.dinglisch.android.taskerm/drawable/hl_av_pause

- Task > End If

# Open the Platypush Mopidy UI when the notification is tapped
- Variable > Variable Set
  Name: %base_url
  To: http://localhost:8008/plugin/music.mopidy

# Convert duration and elapsed time to milliseconds
- Variable > Variable Set
  Name: %duration
  To: %duration * 1000
  Do Maths: ✔️
  If: %duration is set

- Variable > Variable Set
  Name: %elapsed
  To: %elapsed * 1000
  Do Maths: ✔️
  If: %elapsed is set

# Send the media notification
- Plugin > AutoNotification > AutoNotification
  Structure Output (JSON, etc.): ✔️
  Configuration:
    - Updating and Persistency > ID
      - Content: %notification_id
    - Texts > Title
      - Content: Music on %device_id
    - Icons and Images > Icon
      - Content: %action_icon
    - Icons and Images > Status Bar Icon
      - Content: ic_action_music_1
    - Media > Media Layout > ✔️
    - Media > Media Options > Track Name
      - Content: %title
    - Media > Media Options > Artist Name
      - Content: %artist
    - Media > Media Options > Album Name
      - Content: %album
    - Media > Media Options > Icon
      - Content: %image
    - Media > Media Options > Playback State
      - Content: %notif_state
    - Media > Media Options > Playback Position
      - Content: %elapsed
    - Media > Media Options > Playback Duration
      - Content: %duration
    - Media > Media Options > Command Play
      - Content: music=:=%device_id=:=TOGGLE
    - Media > Media Options > Command Pause
      - Content: music=:=%device_id=:=TOGGLE
    - Media > Media Options > Command Previous
      - Content: music=:=%device_id=:=PREVIOUS
    - Media > Media Options > Command Next
      - Content: music=:=%device_id=:=NEXT

Now that we have the profile set up, we need to configure the hooks to the specified media commands.

Create a new profile in Tasker, call it e.g. "On Music Notification Command", select "Event" as the profile type, then "Plugin" > "AutoTools" > "AutoTools Command". Then click on the pencil icon to configure the event, select "Command Filter", and input music=:=.

Finally, create a new task for this profile to parse the command and execute the corresponding playback task:

- Task > Perform Task
  Name: Music Command Generic
  Parameter 1 (%par1): %aacomm1
  Parameter 2 (%par2): %aacomm2

And that's it!

Try and play some music on Mopidy on your phone and you should see the media notification appearing in the notification area, allowing you to control playback directly from there.

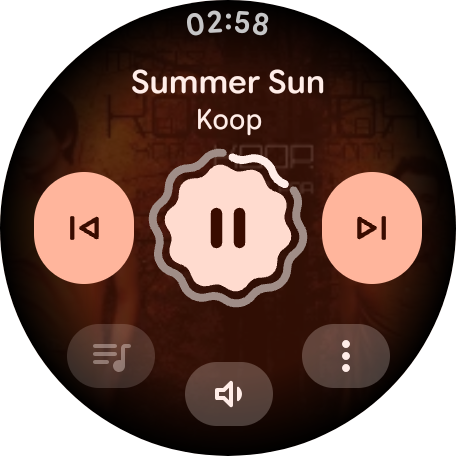

A bonus of this setup is that the media notification will also appear on the lock screen, on connected Bluetooth devices and on Wear OS smartwatches, allowing you to control playback from there as well.

Adding more Mopidy instances

The beauty of this setup is that it can easily be extended to control multiple Mopidy instances running on different devices, all from the same Tasker setup.

Most of the configuration can also be replicated to e.g. a Raspberry Pi at home - just change the device_id in the Platypush configuration to e.g. home, and create new Tasker tasks for playback commands that use home as the target. You'll be able to control playback on your home Mopidy server from your phone as well, and also receive media notifications from your home device.

Conclusions

In this article we have seen how to build a self-hosted mobile music streaming setup based on Mopidy, Platypush, ntfy and Tasker.

This setup allows you to stream music from various sources directly on your Android phone, and control playback through interactive media notifications created by Tasker.

If you want to learn about how to extend it to support synchronized multi-room playback with Snapcast or keep a record of your listening history across multiple devices, check out my previous articles on the topic.
